raspiCamSrv Camera AI Configuration

Up

NOTE: This dialog is only available if the Active Camera is a Raspberry Pi AI Camera and if AI features have been activated in the Settings Diaolog

The IMX500 imaging sensor of the AI Camera can load a neural network model from a location on the Raspberry Pi and apply it to the individual frames delivered by the sensor. Inference data, generated by the model, are supplied to application2 through image meta data. This allows applications to evaluate these data and visualize them in the application context or through overlays on the individual frames.

Configuration

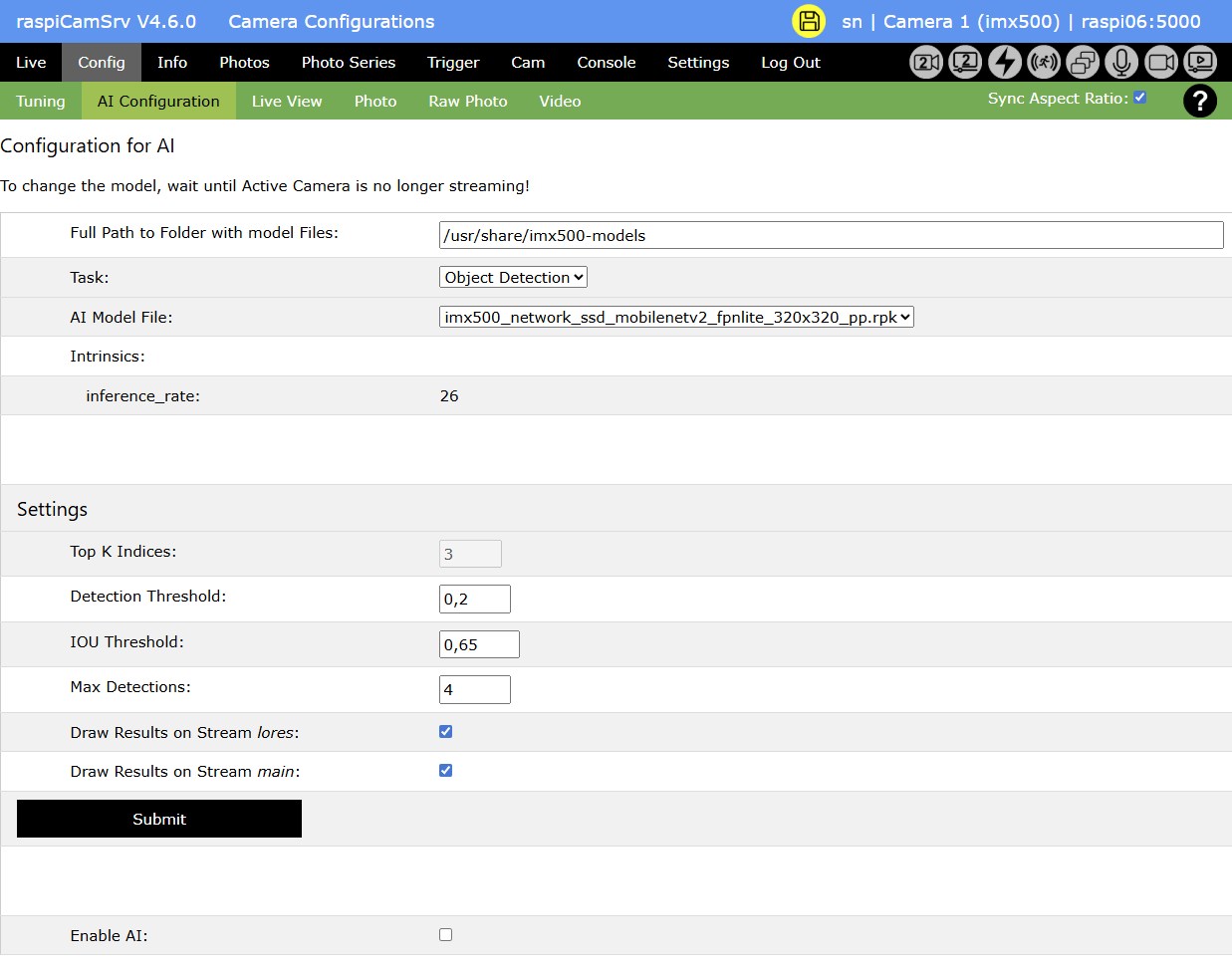

The dialog has three distinct sections:

Configuration for AI

Here you specify the neural network file which will be loaded by the AI Camera.

NOTE: The model can only be changed if the imx500 camera is currently not open. So, you need to wait until the Live View background process has automatically stopped (within 10 seconds).

You can check the status Live stream of the Active Camera by clicking on the Config menu until you see the Process Status Indicator for the Active Camera change to grey.

Then, the fields for selection of the AI Model File will be enabled:

  • Full Path to Folder with Model Files
    This is the folder where model files are stored.
    With installation of the imx500-all package, a set of model files will already be available at
    /usr/share/imx500-models.
    Leaving the field empty will automatically set this as the default folder.
  • Task
    Every model file has a specific Task.
    You can currently choose between
    - Classification
    - Object Detection
    - Pose Estimation
    - Segmentation
    When choosing one of these tasks, the entry for the AI Model File will be cleared to enforce selection.
  • AI Model File
    After a Task has been chosen, raspiCamSrv will iterate the available model files in the specified folder and determine the Task for which these have been prepared.
    Only files having the specified task will be offered for selection.
  • Intrinsics
    Every model fileexposes a set of intrinsics characterizing its capabilities and operational details.
    These will be shown here.

Sources and details for various Reference Neural Network Models can be found on https://github.com/raspberrypi/imx500-models

Implementations within raspiCamSrv are based on the Demo Code Examples coming with Picamera2.

Settings

This section includes several parameters by which the visualization of inference data can be adjusted.
Only a subset of these parameters is applicable for a specific model.
Parameters which do not apply, are disabled when a model has been selected.

  • Top K Indices (Classification)
    Only the given number of indices with the highest rating will be visualized.
  • Detection Threshold
    Only detections having a score larger than the given threshold will be visualized.
  • IOU Threshold
    Specifies the IoU (Intersection over Union) threshold for object detection.
  • Max Detections
    specifies the maximum number of detections to be visualized
  • Draw Resulte on Stream lores
    If activated, inference results will be visualized on the lores stream which is usually used for the Live Stream Configuration
  • Draw Resulte on Stream main
    If activated, inference results will be visualized on the main stream which is usually used for the Photo and Video Configuration

NOTE: Text sizes and line thickness used for visualization, as used in the Picamera2 demos are optimized for lower resolution previews (e.g. 640x480). If you intend to visualize on photos and/or videos, it is recommended to set the Stream Size to a 'Custom' size of about the same size as the lores stream for Live View.

Enable AI

Here you can enable the selected model together with the visualization parameters. Or you can disable a currently active model.

Either way will require a confirmation.
